| ブランド名: | customized |
| モデル番号: | プロジェクトファイルによると |
| MOQ: | 議論するために開いています |
| 価格: | open to negotiate |
| 支払条件: | T/T |
| 供給能力: | 100,0000pcs |

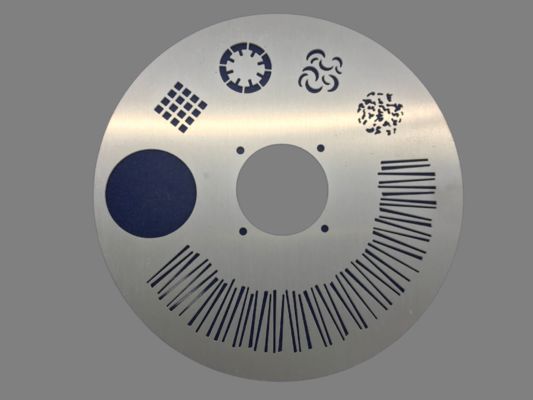

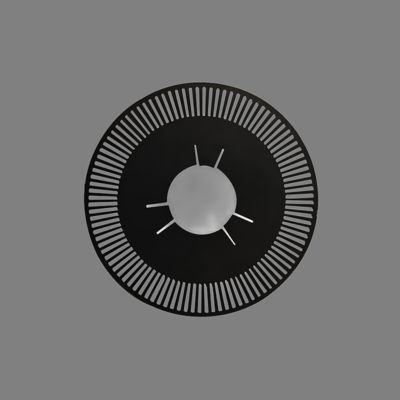

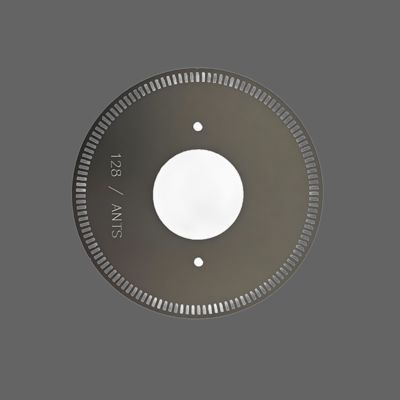

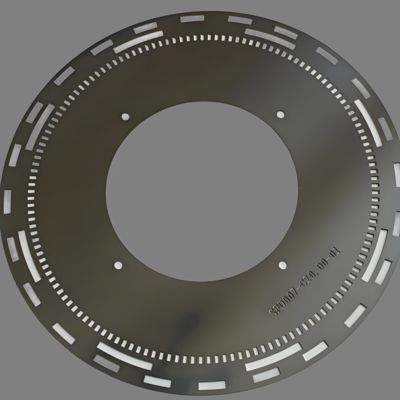

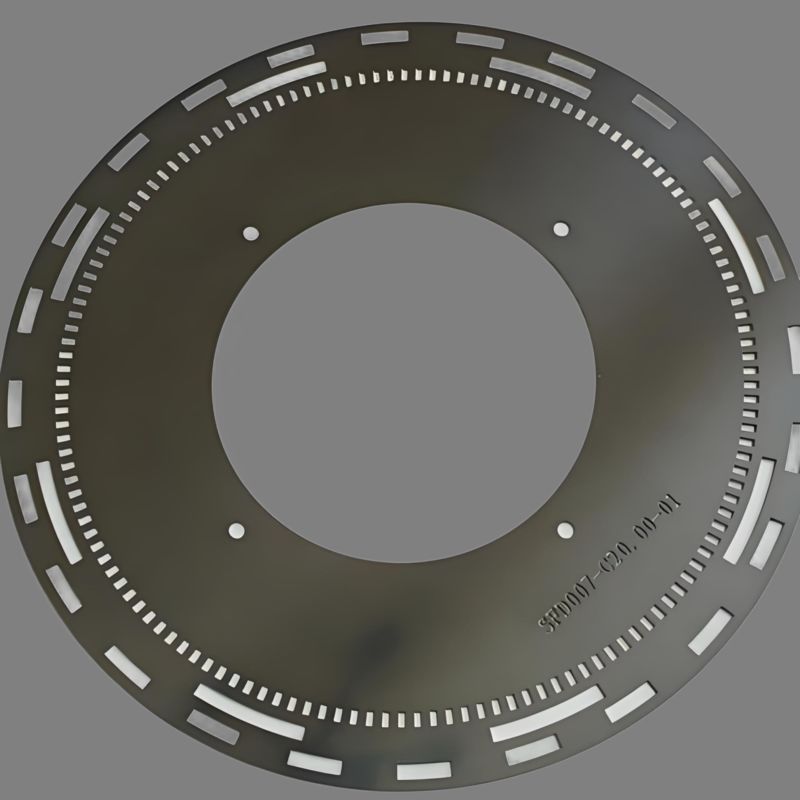

Chemical etching stainless steel encoder disk for optical encoder sensor
Encoder specification:
| Machining Type | photo chemical etching stainless steel precision optical encoder disk |
| Material Capabilities | Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Aluminum, Alloy (Thickness from 0.03 mm up to 1 mm) |
| Product Dimension | 220*280 mm |
| Product precision | 0.01 |
| Smallest open hole | D= 0.1mm when Thickness range from 0.03mm to 0.05mm 1.5*Thickness |
| Centre to Centre for holes | 1.5*Thickness |
| Surface treatment | Surface treatment |
Photo Etching is flexible, highly accurate and effective at any volume. The photo etching process is known by many names, including chemical etching, acid etching and photo chemical machining (PCM).
Metal Selection
Xinhaisen offer a huge range of metals for etching including: Stainless Steels, Carbon Spring Steels, Copper, Brass, Nickel Silver, Mild steel, Phosphor Bronze, Silver, Beryllium Copper, Aluminium, Nickel, Mu Metal, Alloy 42, Alloy 52 & Many Others.
Benefits of Photo Etching
